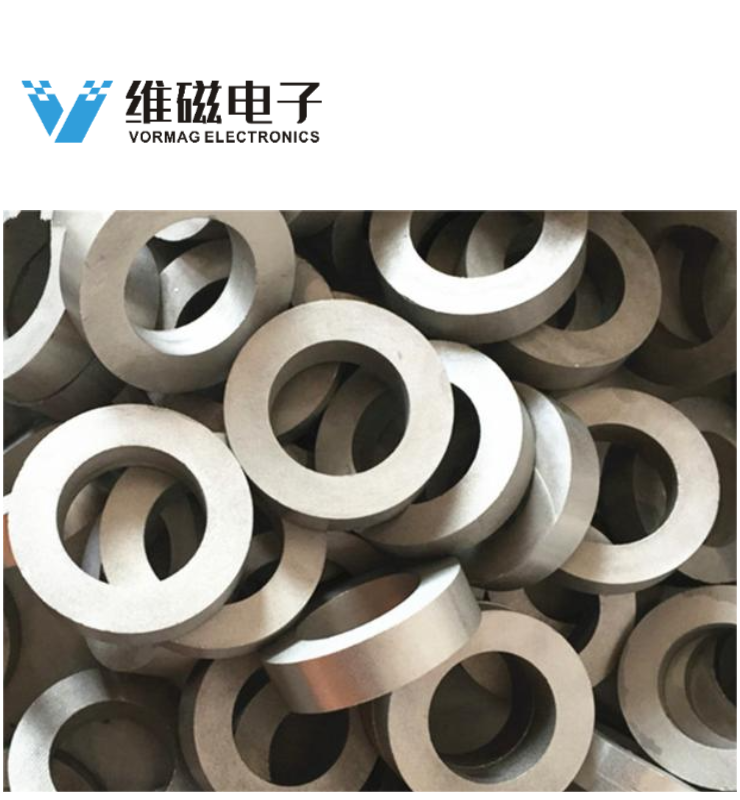

SMCO PERMANENT MAGNET Ring Shapes
magnets
magnets
magnets
magnets

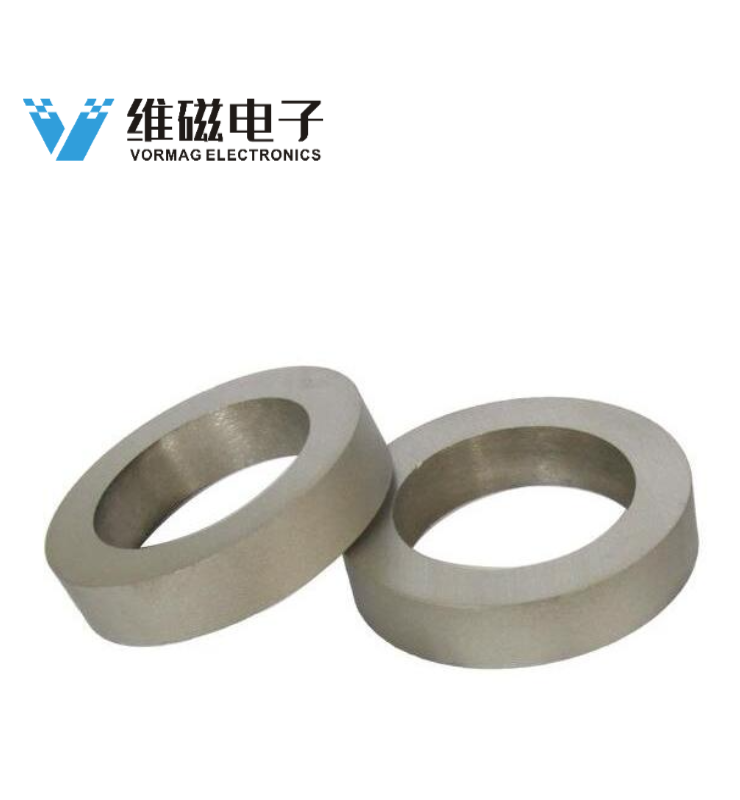

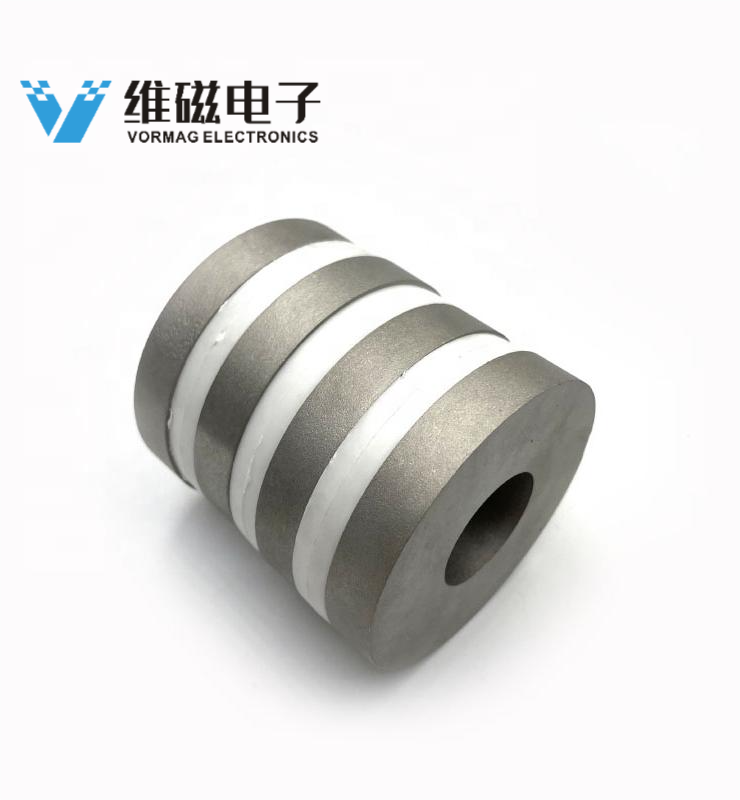

SMCO PERMANENT MAGNET Ring Shapes
magnets
magnets
magnets
magnets

SmCo Magnets are perfect for high temperature application, as they can work properly at 250-300 °C. We provide Samarium Cobalt Ring Magnets with all grades and tailor-made dimensions. Ring SmCo magnets are widely used on electro acoustic & telecommunication apparatus, meters, magnetic mechanism, sensors, etc.

Corrosion Resistance
SmCo magnets can usually be used in humid applications without any need for a protective coating. In wet envrironments, coating of SmCo(2:17) in NiCuNi is recommended to avoid surface corrosion issue.
The corrosion resistant of SmCo magnets are considered good, surface coating is unnecessary, but the coatings like NiCuNi, Zn, Black epoxy can be plated if required. The oxidation resistance behavior of SmCo (2:17)-type high-temperature magnets modified with Ni–Cr two-layer coating is under studied.

Excellent Temperature Stability
Samarium cobalt magnets experience a minimal change in their magnetic performance as temperature increases from ambient, far less than neodymium and ferrite (ceramic) magnets. Being part of the rare-earth magnet family, Samarium cobalt magnets rank similarly in strength to neodymium magnets but have much higher temperature stability and higher coercivity.

Physical properties of sintered Sm-Co magnets
Property (unit)Sm-Co
Remanence (T)0.8–1.16
Coercivity (MA/m)0.493–2.79
Relative permeability (–)1.05–1.1
Temperature coefficient of remanence (%/K)−0.03..–0.05
Temperature coefficient of coercivity (%/K)−0.15..–0.30
Curie temperature (°C)700–850
Density (g/cm3)8.2–8.5
CTE, magnetizing direction (1/K)(5–9)×10−6
CTE, normal to magnetizing direction (1/K)(10–13)×10−6
Flexural strength (N/mm2)150–180
Compressive strength (N/mm2)800–1000
Tensile strength (N/mm2)35–40
Vickers hardness (HV)400–650
Electrical resistivity (Ω·cm)(50–90)×10−6
