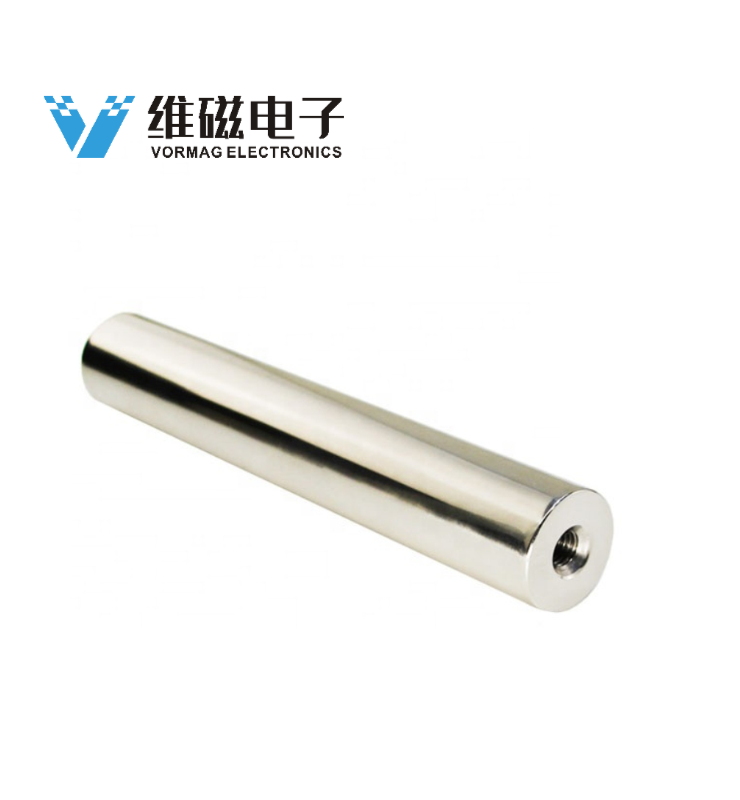

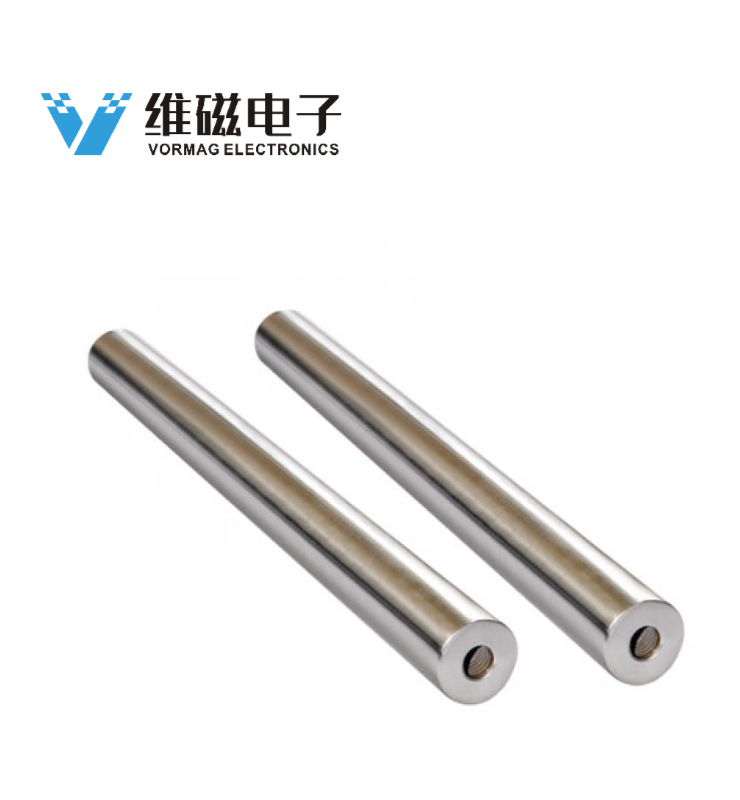

Neodymium rod and cylinder magnets are useful for multiple applications. From crafting & metal working applications to exhibition displays, audio equipment, sensors, motors, generators, medical instruments, OEM equipment and much more.
Parameter | Unit | Value |
Density (ρ) | g/cm³ | 7.4-7.7 |
Curie Temperature (Tc) | ℃ | 310-370 |
Vickers Hardness (HV) | Mpa | 500-600 |
Tensile Strength | Mpa | 80-90 |
Young’s Modulus (E) | Gpa | 150-200 |
Electrical Resistivity | µΩ·cm | 144 |
Flexural Strength | kg/mm | 25 |
Coeff. of Thermal Expansion | ℃ | 4*10-6 |
Thermal Conductivity (λ) | W(m.K) | 8-10 |
Rigidity | N/m2 | 0.64 |
Compressibility | m2/N | 9.8*10-12 |
Relative recoil permeability | µ rev | 1.05 |
