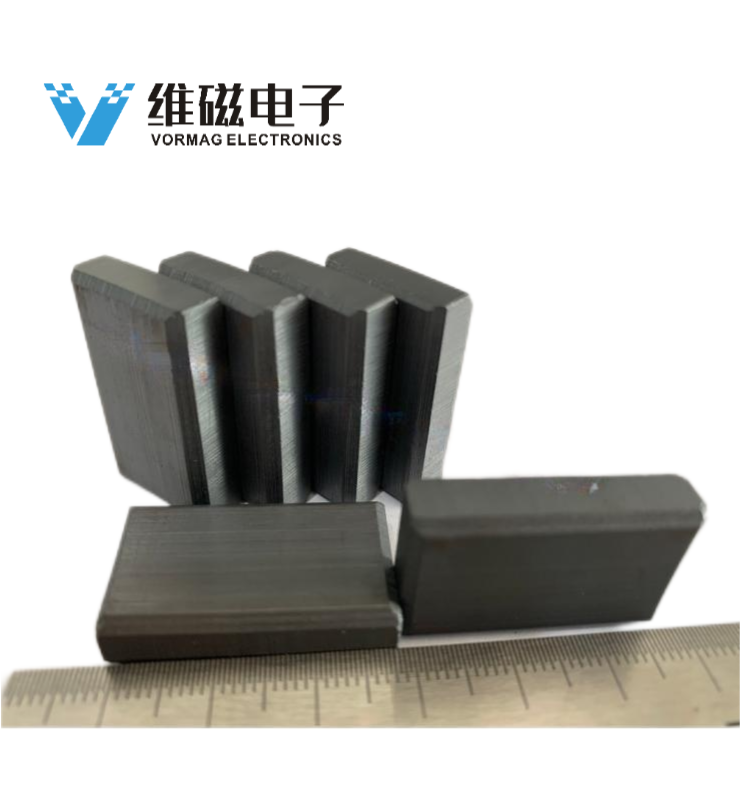

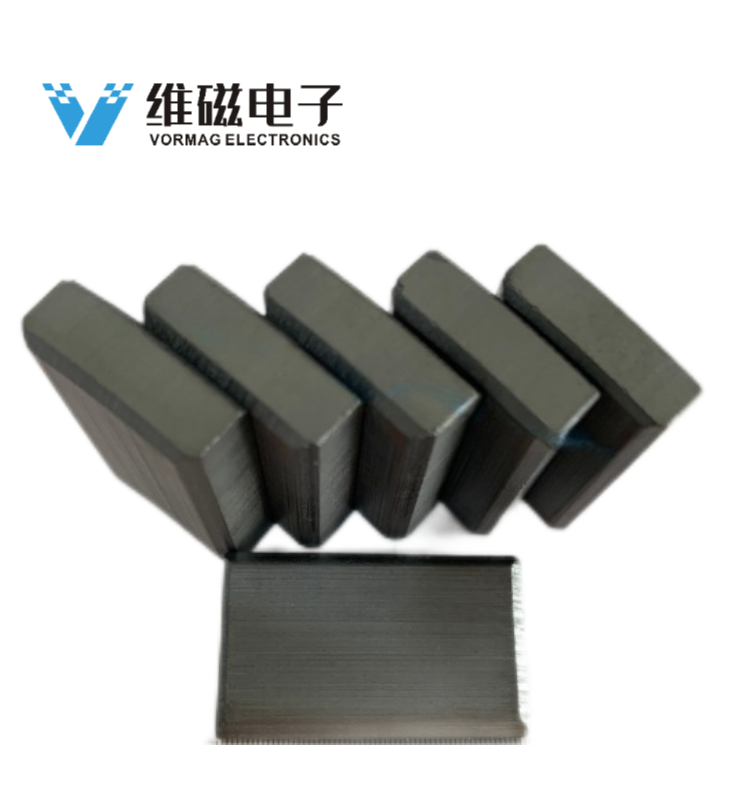

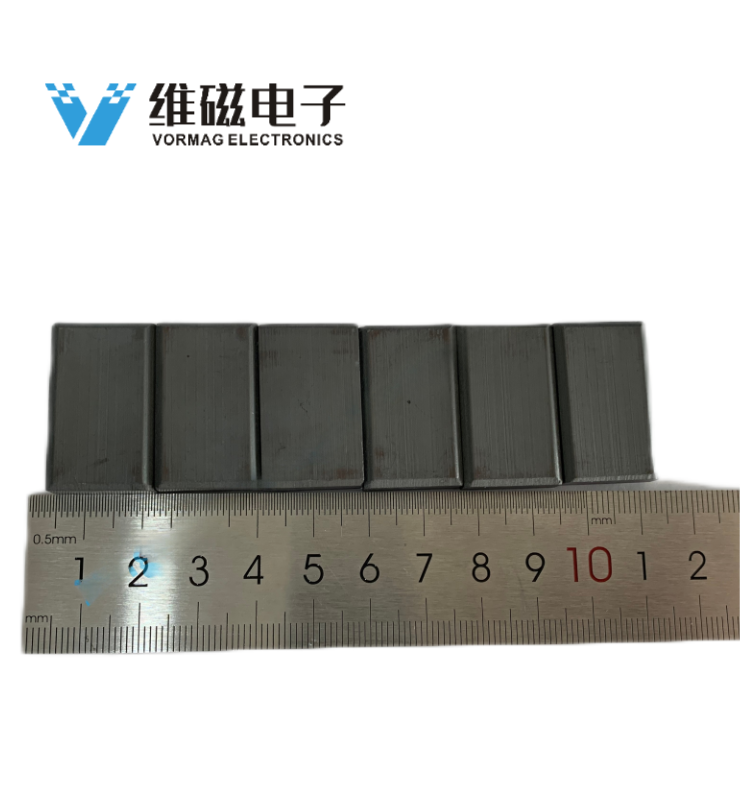

Permanent magnets for EPS Motors
magnets
magnets
magnets
Permanent magnets for EPS Motors
magnets
magnets
magnets

Material grade: Y30BH

Density: 4.8g/cm3

Operating temperature: 250 ℃

Remanence: 415T

Coercive force: 200KA/m

Intrinsic coercive force: 335KA/m

Maximum magnetic energy product: 32.5KJ/m3

Curie temperature: 250℃

Product Features:

Good coercive force;

Nice temperature stability;

High resistance against corrosion, acids, salts, lubricants;

Working temperature: -40℃to +200℃.


hard ferrite magnets physical properties
OrientationAnisotropic
CompositionMO·6Fe2O3(M means Ba, Sr or their mixture)
Recoil relative permiability1.05-1.3 [μrec]
Density4.8-5.1 g/cm3
Curie Temp.460-480°C
Thermal Conductivity5-10 W/m k
Poission's Ratio0.28
Electric Resistivity≥10000 Ω·cm
Temp. Coeff. of Br- 0.2 %/°C
Temp. Coeff. of Hcj0.2-0.5 %/°C
Vickers Hardness480-580Hv
Linear Expansion Coefficient7-15*10⁶/°C^(-1)
Specific Heat0.15-0.20 cal/g·ºC
Flexural Strength5-9 [kgf/mm2]
Compressive Strength> 70 [kgf/mm2]
Tensile Strength0.2-0.5*108N/mm2
Young's modulus120-180 kN/mm2


Permanent ferrite magnets are made of hard ferrites, which have a high coercivity and high remanence after magnetization. The high coercivity means the materials are very resistant to becoming demagnetized, an essential characteristic for a permanent magnet.

The magnetic properties of ferrite magnet tiles show high permeability at high frequencies.Therefore, ferrite has become a non-metallic magnetic material with a wide range of applications in the field of high frequency and weak current and have excellent practical properties that outperform metallic magnets and can be mass-produced at a high cost-performance ratio, perfectly suited for higher volume production runs.
Ferrite magnets are used in applications where magnets can be, or need to be relatively large and the cost needs to be as economic as possible. Permanent magnet materials can provide stable and long-lasting magnetic flux without consuming electric energy, which is one of the important means to save energy. Permanent magnet motors are typical high-efficiency, energy-saving and low-carbon industrial products, which are widely used in various industrial transmissions and rotating devices.
