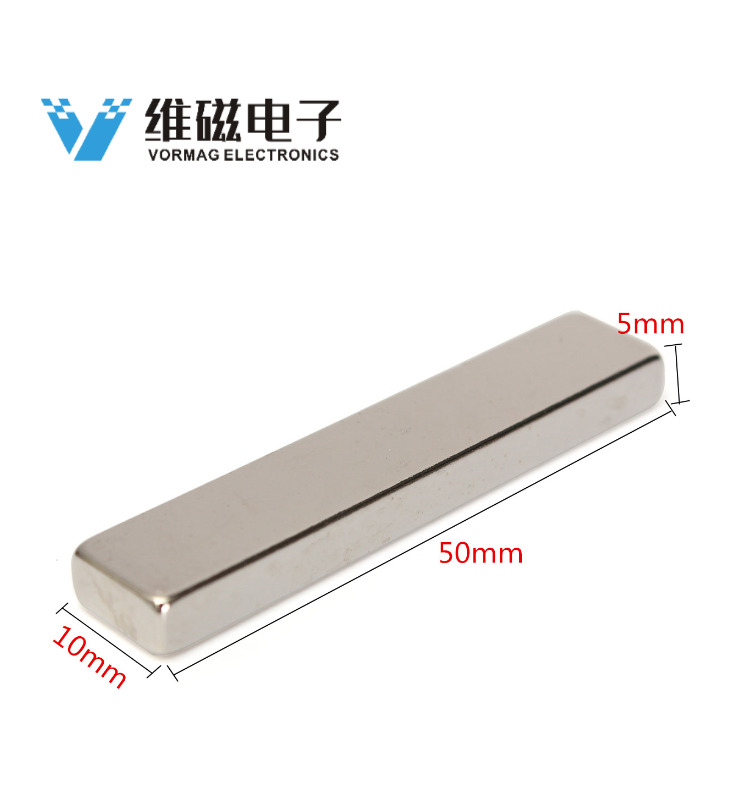

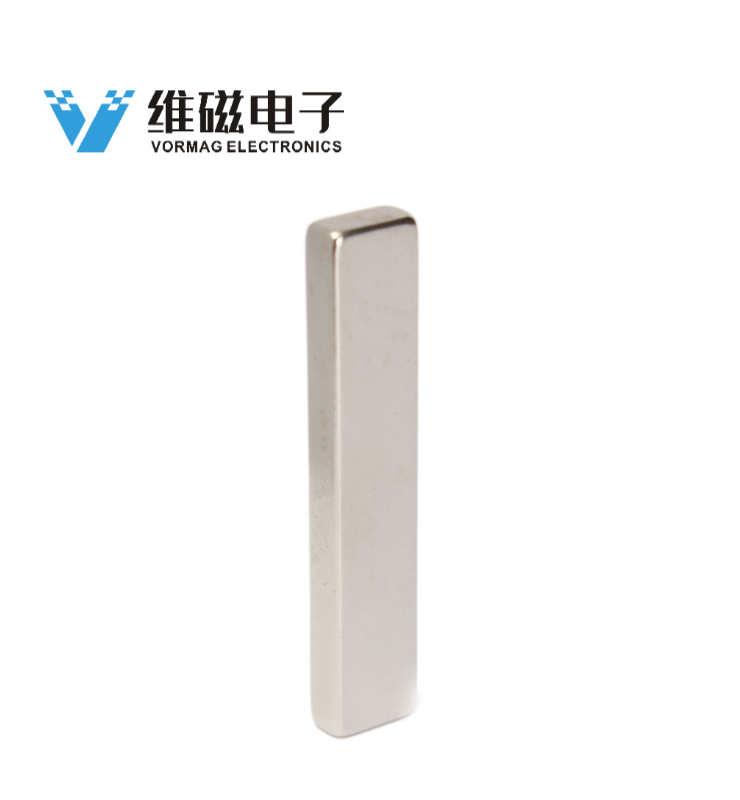

N50 50x10x5mm Strong Long Block Magnet Rare Earth Neodymium Magnet

Specification:

Specification:

Shape: Block

Grade: N50

Material : NdFeB magnet

Color: Silver

Size: 50x10x5mm

Applications such as magnetic separation, magnetic machinery. pipe descaling, magnetic fixture, magnetic locks, magnetic tools, gifts and packaging etc.


Material and Physical Properties:

The material and grade of a magnet refer to a set of properties which ultimately yield the magnet's performance.

The strength of a magnet can be found in the magnet specification known as BHmax, which is the maximum energy density of a magnet. This is defined in Mega Gauss Oersteds, or MGOe. For Neodymium (NdFeB) Magnets the BHmax will range, in general, from 30 MGOe to 55 MGOe.

The exact magnetic strength will be determined by its grade mostly, for example, regarding the same dimension magnet Dia10*5MM, the higher the grade is, the stronger the strength will be.

Neodymium magnets produce the highest MGOe of any permanent magnet material. The most common grades of Neodymium magnets are N33, N35, N38, N40, N42, N45, N48, N50, N52, and N55.
